About the "Move database files to new location" option

By default, database and log files are restored to their original directories . If you plan to restore database to new location , you can change directories by clicking the "New Location" button .

The name rules of database files as following:

• [ Directory ]+[ Logical Name ] + ".mdf"  for database primary file  ,
• [ Directory ]+[ Logical Name ] + ".ndf"  for database user-added files  ,
• [ Directory ]+[ Logical Name ] + "_log.ldf"  for log file.

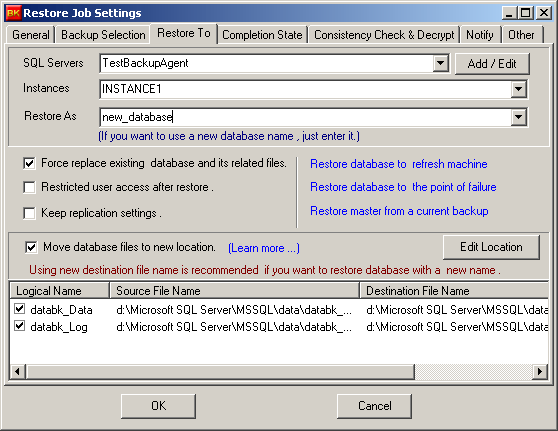

Please note if the  "Move database files to new location" option is selected:

• If the "Restore As" field value is the original database name, the original database and logs files will go away and be move to new location.
• If the "Restore As" field value is a new database name, the new database and log files will be created in new directories , original database and log files will NOT be removed.
• Please  make sure new directory already exists before the job starts.
